Long Range QR code Scanner Bluetooth 2D Area Imager QR code Reader
Key Point:
- Over 100M, even 250M long distance communication distance (open space)
- Area Imager, high performance 1D, 2D and QR code Supported, such as PDF417, Data Matrix, EAN13, EAN8, UPC, Code128, Code39 etc.
- Long working timer: continuously work for 12 hours if 1times/sec.

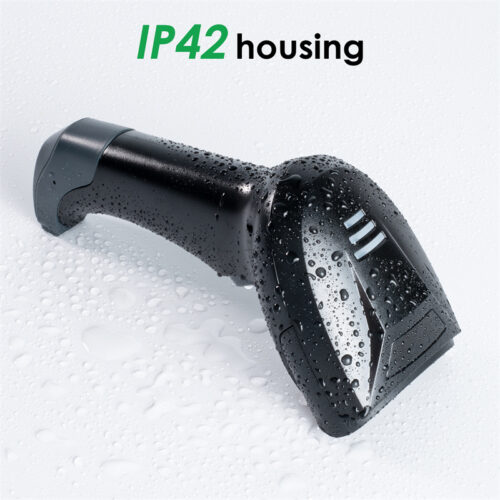

- IP42 drop resistance

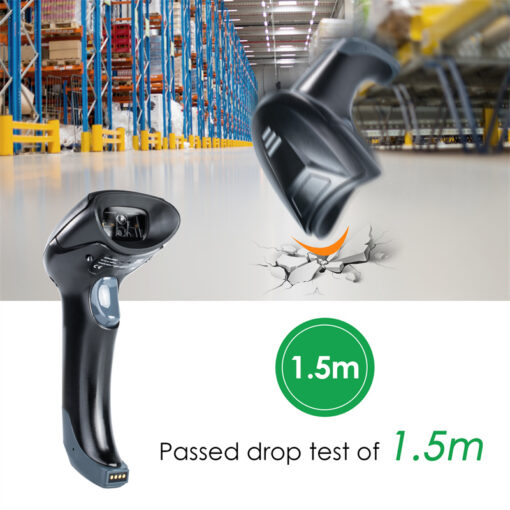

- Rugged: 1.5M Drop Resistance
- Fast Speed
- Widely Application: Supermarket, Warehouse & Inventory, Medical Pharmacy Store, Book Shop, Express & Logistics, Restaurant etc.
|
Product Name |
Long Range QR code Scanner Bluetooth 2D Area Imager QR code Reader |
|
Model
|
SG102
|
|
Physical Characteristics
|
|
|
Dimensions
|
208mm x 81mm x 115mm
|
|
Weight
|
460g
|
|
Voltage/Current
|
5 VDC +/-10% @ 500 mA
|
|
Performance Characteristics
|
|
|
Image (Pixels)
|
640 pixels (H)x 480 pixels (V)
|
|
Light source
|
Aiming: 617 nm LED; illumination: 6500K LED
|
|
Field of view
|
40° (H) x 32° (V)
|
|
Roll / Pitch / Yaw
|
360°, ±65°, ±60°
|
|
Battery volume
|
4.2v/2500mAh
|
|
Charging time
|
5-6 h
|
|
Working time
|
1S/per scan, continuously work for 12 hours
|
|
Wireless technolngy
|
Bluetooth 5.0
|
|
Operation distance
|
250 meters (open space)
|
|
Print contrast
|
25% minimum reflective difference
|
|
Interfaces supported
|
USB, OTA
|
|
Motion tolerances
|
up to 25 in. (63.5 cm) per second
|
|
Symbology Decode Capability
|
|
|
1-D
|
UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5,
Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc. |
|
2-D
|
PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin,etc
|
|
User Environment
|
|
|
Operating temperature
|
0°C to 50°C
|
|
Storage temperature
|
-40°C to 70°C
|
|
Humidity
|
0% to 95% relative humidity,non-condensing
|
|
Shock specifications
|
Designed to withstand 1.5m(5’) drops
|
|
Ambient light immunity
|
100.000 Lux.
|
|
Decode Ranges
|
|
|
5 mil (Code 39)
|
30mm-90mm
|
|
13 mil (100% Upca)
|
40mm-170mm
|
|
1D minimal resolution
|
4mil
|
