Hotel Desktop OCR MRZ E-passport Reader, Contactless Smart ID Card Reader EPP201 For Access Control
Model: EPP201
Keypoint:

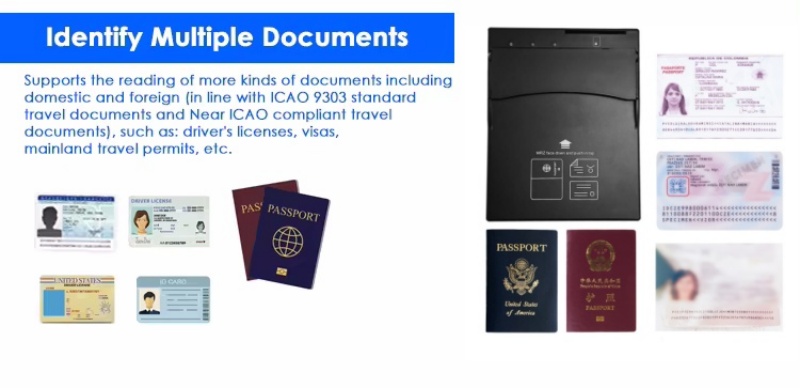

- Multi-function: E-passport scanner + Half page normal passport OCR scanner + Visa MRZ Scanner + Contact ID Card Reader + Contactless ID Card Reader
- OCR skills workable for any ICAO9303 document such as passport, visa, ID card etc.
- Support Contactless smart ID card which compliat with ISO14443/7816
- Support ISO1801 Standard Driver License
- Support contact smart card which compliat with ISO/IEC 7816 Part 1 to 4; T=0, T=1
- Widely Application: airport, hotel, duty free shop, travel agency, liquor store, customs access control, bank etc.
Performance Characteristics
MRZ/OCR reading
Supported Font: OCR-B
Supported Stardards: ICAO 9303 specification Parts 1-4
Supported Documents:
3 lines MRZ- ID1: eID, Resident Permit.
2 lines MRZ
ID3: Passport, Visa… – ID2: ID Card.
1 line MRZ
ID1: Driving Licence…
Contact Smart Card reading
Supported Standards: ISO/IEC 7816 Part 1 to 4; T=0, T=1
Supported Card Types: 5V, 3V and 1.8V, ISO/IEC 7816 Class A/B/C
Card Size: ID-1
Smart Card Interface Speed: Up to 600 kbps (depending on card)• TA1=97
Communication: Compliant with CCID and PC/SC standards
Contactless/RFID/NFC reading
Supported Standards: ISO/IEC 14443, ISO/IEC 18092
Supported Card ICs: MIFARE® Classic Family, MIFARE Ultralight Family, MIFARE Plus Family,MIFARE DESFire Family, FeliCa™, NFC Forum Tag Types 1/2/3/4
Data Transfer Rate: 106/212/424/848 kbits/s, depending on card IC
Communication: Compliant with CCID and PC/SC standards
General
Host Interface: USB 2.0 CCID (USB 1.1/3.0 compliant)
Communication: 12 Mbps (USB 2.0 full speed)
Power Supply: Bus-powered USB
Connector: 1.5m USB cable with USB type C connector
Dimensions(L*W*H): 176.5*140.6*28.8 mm
Weight: 300g
Status Indicator: 3 LEDs
Body: Black, ABS
Temperature: In operation: 0°C to 50°C• Storage: -40°C to 80°C
Humidity: 0-95% non-condensing
Host operating systems: Windows, Linux, Android
